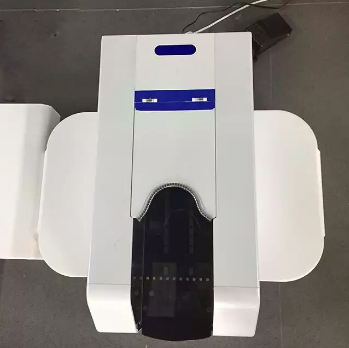

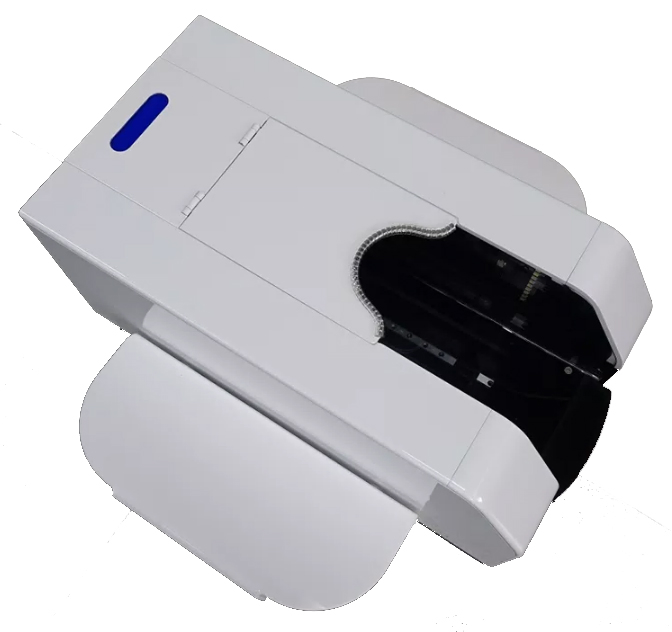

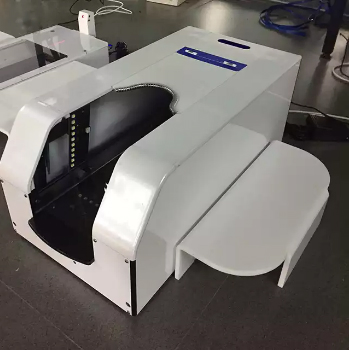

High Accuracy Last Handheld Fpr Shoe 3D Building Foot Scanner
High Accuracy Last Handheld Fpr Shoe 3D Building Foot Scanner
High Accuracy Last Handheld Fpr Shoe 3D Building Foot Scanner
High Accuracy Last Handheld Fpr Shoe 3D Building Foot Scanner
High Accuracy Last Handheld Fpr Shoe 3D Building Foot Scanner
1 / 5
High Accuracy Last Handheld Fpr Shoe 3D Building Foot Scanner
High Accuracy Last Handheld Fpr Shoe 3D Building Foot Scanner
High Accuracy Last Handheld Fpr Shoe 3D Building Foot Scanner
High Accuracy Last Handheld Fpr Shoe 3D Building Foot Scanner
High Accuracy Last Handheld Fpr Shoe 3D Building Foot Scanner

High Accuracy Last Handheld Fpr Shoe 3D Building Foot Scanner

Customization: Available
Type: Orthopedics
Function: Rehabilitation
Send Inquiry

Product Description

📋

Basic Information

Model NO.
SN-UPOD-S
Theory
Laser
Certification
CE, ISO13485
LCD Display
Without LCD Display
Group
Adult
Transport Package
Marton Carton
Origin
China
Production Capacity
1000pieces/Year
🔍

Product Description

High accuracy fpr shoe last handheld 3D building foot scanner

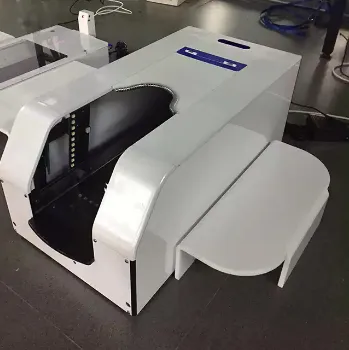

3D Building Foot Scanner 1
3D Building Foot Scanner 2
Feature SN-UPOD-S SN-UPOD
Foot/Foam Box/Plaster CastYes/Yes/YesYes/Yes/Yes
Full Foot Non/Full/Semi-WeightYes/Yes/Yes
Indoor Lighting ConditionsYes, no darkroom or shielding required. Avoid direct sunlight.
3D AccuracyClean 3D Mesh +/-1.0mm.
3D OutputSTL/WRL, PDF, CSV file
Color Texture (Round-Trip)Yes. Unique feature for 3D foot scanners.
Size (mm) / Weight(Kg)520*270*220 / 10kg600*345*310 / 17kg
Scan Volume (mm)330*130*115350*150*150
Load Capacity130 Kg180 Kg
PC Requiredi5-6200U, 4~8G ram, and 1080P display
Scanning Speed3.2s one-way for 3D3.9s one-way for 3D
Minimum RAM4G
USB Port2.0 or 3.03.0 only
Operating SystemWin10 only
Power SupplyAC 100-240V; DC 12V/3A. Worldwide compatible.
Warranty1 Year (per warranty statement)

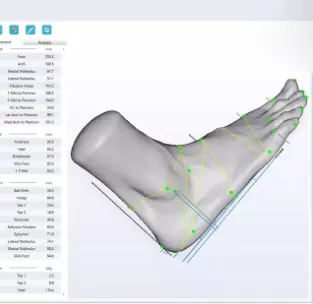

Scan Analysis 1

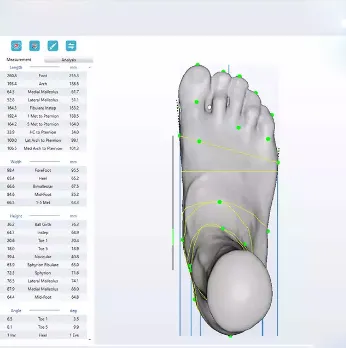

Scan Analysis 2

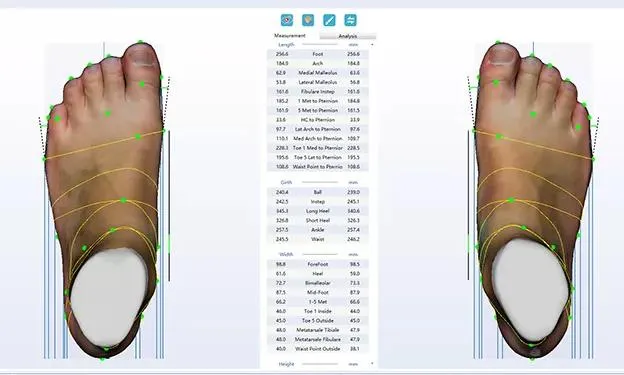

Application 1

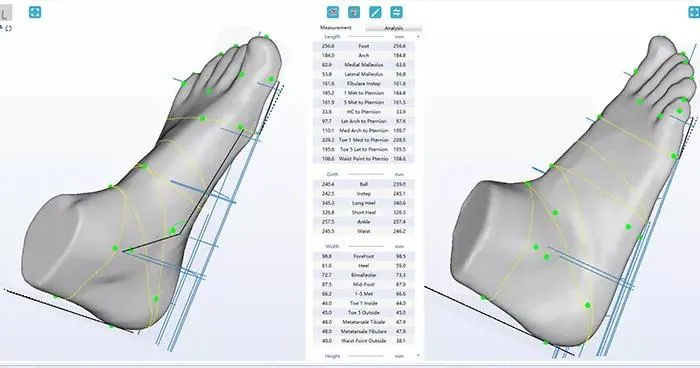

Application 2

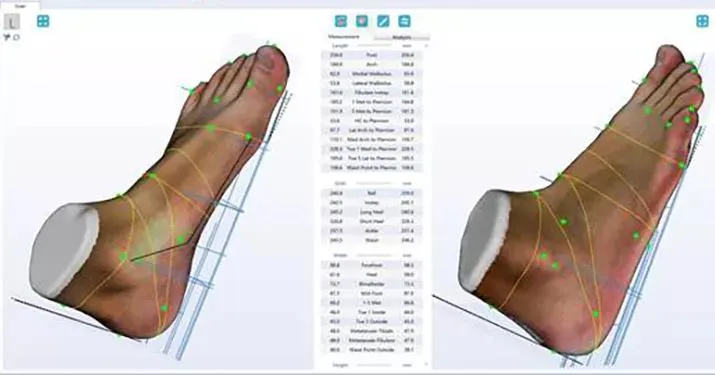

Application 3

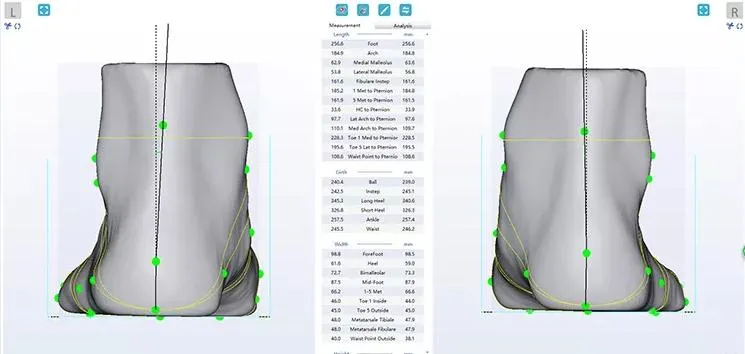

Application 4
💡

Key Features & Advantages

✔
Full-foot 3D with color in non/semi/full-weight modes.
✔
Supports Foam Impression and Plaster Cast; speed 3.2s one-way.
✔
Flexible activation via Software UI or Foot switch.
✔
Works in normal indoor lighting; no dark room required.
✔
Auto diagnostic for arch type, hallux, and heel.
✔
Manual landmark marking and drag-to-match points.
✔
FTP functionality for direct order transmission to fabrication.
✔
Software customization and branding options available.
✔
Developer-friendly: CMD/TCP call scanner for easy CAD integration.
✔
Advanced security: Encrypt scanners to lock data files.
❓

Frequently Asked Questions

What is the scanning accuracy of the SN-UPOD series?
The scanner provides a high-precision clean 3D Mesh with an accuracy of +/-1.0mm, ensuring reliable data for orthotics and shoe manufacturing.
Do I need a special darkroom for the scanning process?
No, the scanner is designed for normal indoor lighting conditions. No darkroom or special shielding is required, although direct sunlight should be avoided.
Which file formats can the scanner export?
The system supports multiple 3D output formats including STL, WRL, PDF, and CSV files, making it compatible with most CAD/CAM software.
What are the minimum PC requirements to operate the software?
You will need a PC with at least an i5-6200U processor, 4GB to 8GB of RAM, a 1080P display, and it must be running Windows 10.
Can it scan items other than bare feet?
Yes, the SN-UPOD series is versatile and can scan feet, foam impression boxes, and plaster casts effectively.
How fast is the 3D scanning process?
The scanning speed is extremely fast, taking only about 3.2 to 3.9 seconds for a one-way 3D scan depending on the model.
